Hooha Customized Power Cable Machine Wire Cable Machine Electric Wire Making Machine

Name: Hooha Customized Power Cable Machine Wire Cable Machine Electric Wire Making Machine
Brand: HOOHA
Price: 54667 USD

Wholesale Hooha Customized Power Cable Machine Wire Cable Machine Electric Wire Making Machine from china suppliers

Brand Name : HOOHA

Model Number : HH-50/80/90

Certification : CE

Place of Origin : dongguan

MOQ : 1

Price : USD 54667

Payment Terms : T/T, MoneyGram, Western Union, L/C

Supply Ability : 10 sets/1 month

Delivery Time : 60 Working Days

Packaging Details : Wooden packing, Film packing, Paper packing

Voltage : 380V

Item : pvc wire making machine

Use : PVC/PE cable

Extrusion Speed : Max 200 m/min

Contact Now

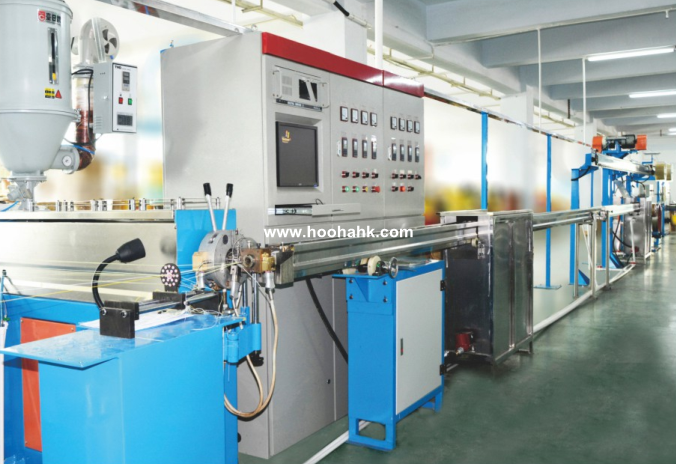

HH-90 extrusion machine

Application:

This equipment is suitable for outer surface extrusion of wires and cables with insulation materials such as PVC/PE.

General Parameters:

No.	Items	Features
1	Inlet Wire Diameter	2～20 mm
2	Finished Wire Diameter	3～25 mm
3	Cross Sectional Area	6～50 square mm
4	Extrusion Speed	Max 200 m/min
5	Extrusion Capacity	280 kg/h
6	Installed Capacity	90 kva
7	Voltage	380V, can be customized
8	Weight	6500 kg
9	Measurement (LWH)	3044 m
10	Workers recommendation	3 workers

Specification

Inlet Wire Diameter	2～20 mm
Finished Wire Diameter	3～25 mm
Cross Sectional Area	6～50 square mm
Extrusion Speed	Max 200 m/min
Extrusion Capacity	280 kg/h
Installed Capacity	90 kva
Voltage	380V, can be customized
Weight	6500 kg
Measurement (LWH)	3044 m
Workers recommendation	3 workers

Product Description

Hooha Customized Power Cable Machine Wire Cable Machine Electric Wire Making Machine

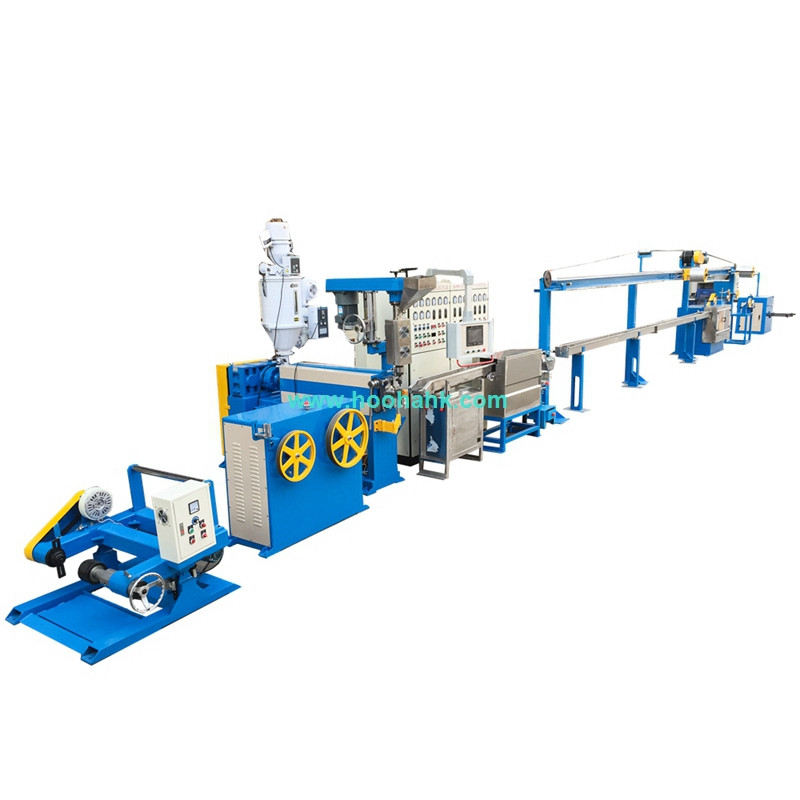

High Productivity Power Cable and Wire Extrusion Machine in Cable Manufacturing Industry

Vedio Link on YouTube:https://hoohaco.en.made-in-china.com

 Application
 It is fit for proportion of wire such as power line insulating coat electrical cable.


 Device element
 It is made up of line pulling set ,main motor,main controlling cabinet,cooling sink,pulling machine,sparkling machine.You can select printer,diameter-testing instrument,PLC controlling,two belt pulling.varity of no axis drawing machine.


Spare Parts Brands
 Motor: Dongguan Motor , Teco, ABB, Siemens
 Inverter : Japan Yaskawa, Siemens, Taiwan Teco
 Temperature Control Meter: Japan RKC;
 Auxiliary Relay: Japan Omron ;
 Ammeter and Voltmeter: Taiwan Risesun ;
 Indicator, Switch and Button: Taiwan TEND ;
 Contactor: Taiwan Shihlin
 Line Speed Meter: Taiwan FOTEK/Yangming
 Bearing : NSK, SKF


Siemens PLC electric control box

1. PLC Siemens 2. Language English / Chinese 3. Operation Touch screen with quick response 4. Control Single / linkage 5. Monitoring and control Data can be set and display on the screen: host rotation speed, extrusion speed, temperature, actual outlet meters etc. Humanized design, simple, convenient and safe operation 6. Inverter Adopts full frequency conversion control, which greatly reduces the energy consumption and ensures the stability of the entire production line.

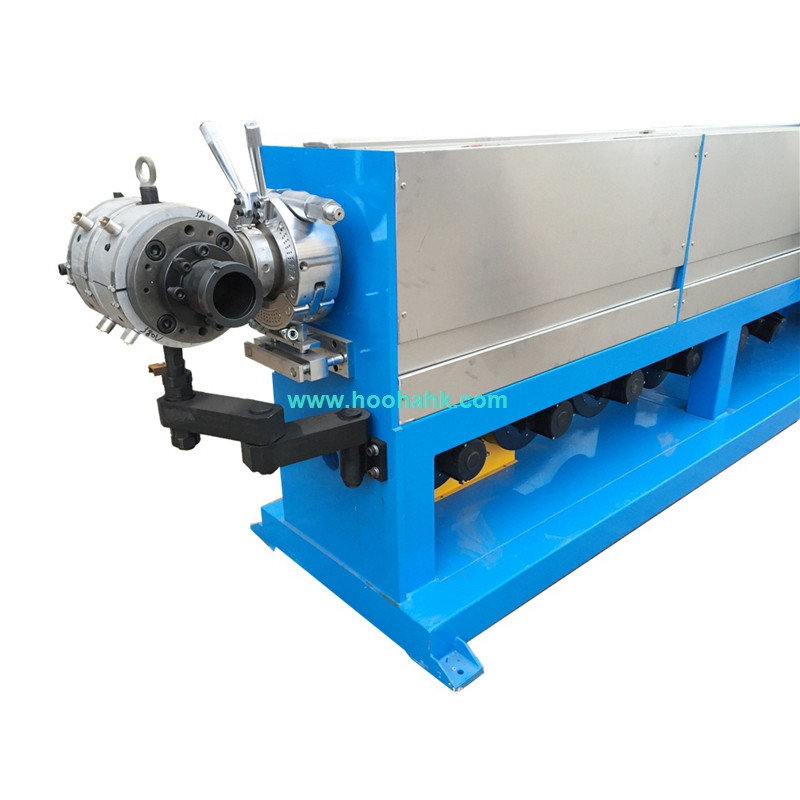

90 Host extruder

1. Insulation material PVC, PE 100% plasticization 2. Extrusion capacity Max 280 kg/h 3. Rotation speed Max 70 rpm 4. Motor 37 kw 5. Heating section 8 6. Cooling section 5 7. Temperature control PID automatic control, 0-399 ℃ 8. Screw diameter 90 mm 9. Length/Diameter ratio 25/1 10. Center height 1000 mm 11. Material and process 38CrMoA1A alloy steel with nitriding treatment, chromed and polished

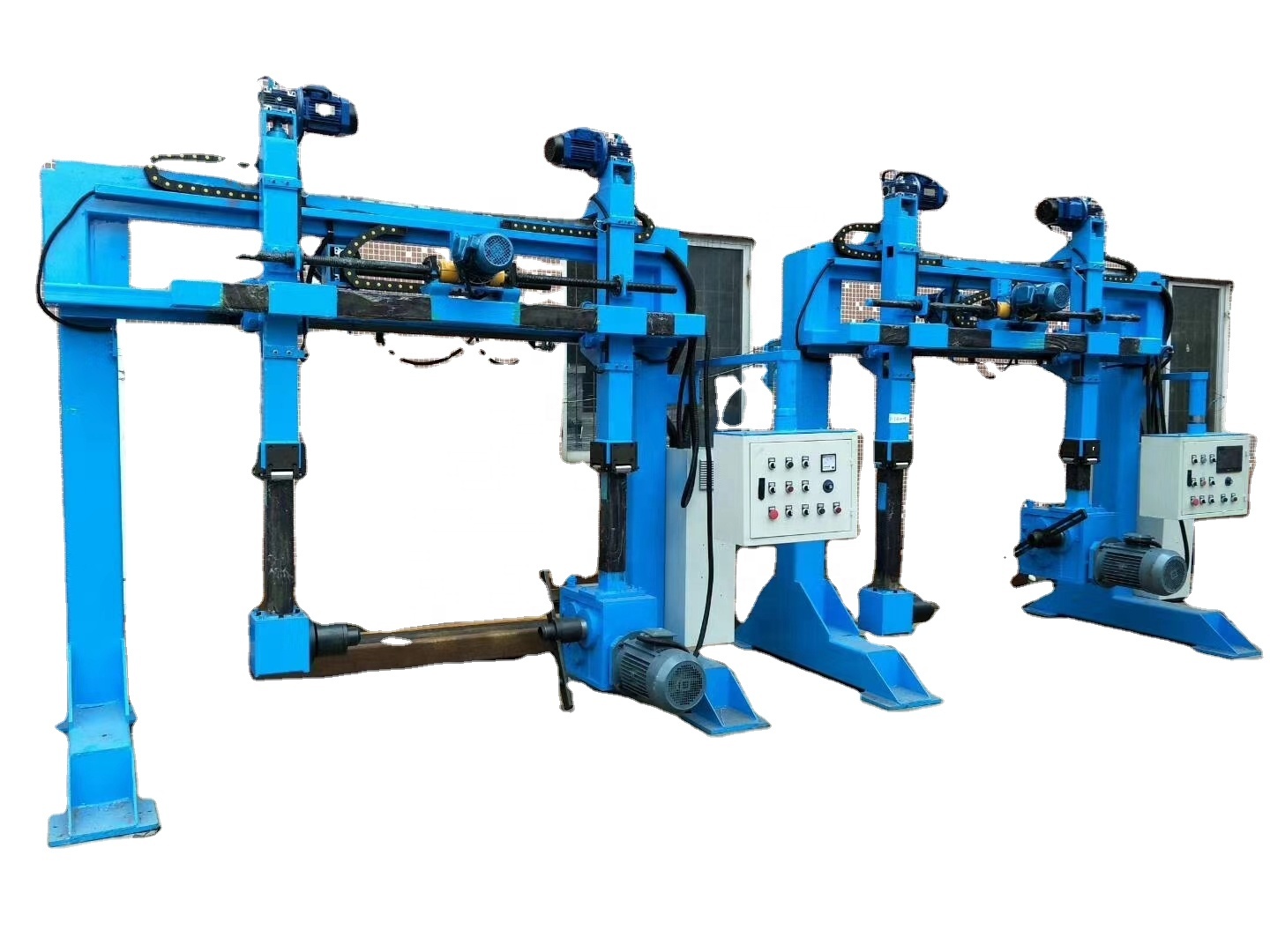

800-1600 gantry pay-off stand
 1. Bobbin diameter 800-1600 mm 2. Bobbin width 600-1180 mm 3. Loading Max 5000 kg 4 Pay-off speed 150 m/min 5. Slide motor 1.5 kw 6. Lift motor 1.1 kw 7. Tension control Pneumatic brake control

630-800 dual take up machine
1. Bobbin diameter 800-1600 mm 2. Bobbin width 600-1180 mm 3. Loading Max 5000 kg 4. Take-up speed 150 m/min 5. Take-up motor 5 kw 6. Slide motor 1.5 kw 7. Lift motor 1.1 kw 8. Tension control Pneumatic brake control

The wire samples

1mm² power cable

power wire sample

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

Hu Machine Designer

20 years engineering design experience

Bi Head Engineer

Responsible for project type engineering

Chen Senior Engineer

Machine design for 30 years

Professional and Strong Manufacture and Sales Team
Name	Education	Position	Mainly responsible for project	Specializing in project	work year
zanyang Xie	college	General Engineer	The total project design and planning	power cable machine	15 years
xiaohua Hu	college	Vis general engineer	The total project design and planning	net cable,data cable machine	10 years
Changhong Cheng	college	Engineer	Drawings and after-sales service	Teflon,Optical fiber cable machine	25 years
xiuwu Chen	college	General Engineer	The total project design and planning	copper drawing machine	15 years
lixin Yuan	college	Engineer	The project design and planning	coppwer wire making technical	16 years
zhenghai Qiu	college	cable engineer	After service	cable making and cable factory management servie	15 years
jinxin Liu	college	Marketing engineer	After service	electrical engineer	7 years
xingguo Tang	High school	Electrical engineer	After service	electrical engineer	10 years
changqiang Li	High school	Maintain engineer	After service	machina maintain and install service	10 years
haipin Li	University	Engineering director	Marketing and sales	project consulting	8 years
sen Yang	University	Engineering translator	Marketing and sales	project consulting	5 years

Our aim: To be a world-class supplier providing wire & cable manufacturing and using solution. Our vision: To make wire & cable manufacturing and using more humanized. Our target: More professional customer service, struggle for employees' dreams. We are a Hong kong company, focusing on in-depth cooperation with Chinese leading manufacturers to provide advanced wire&cable solutions

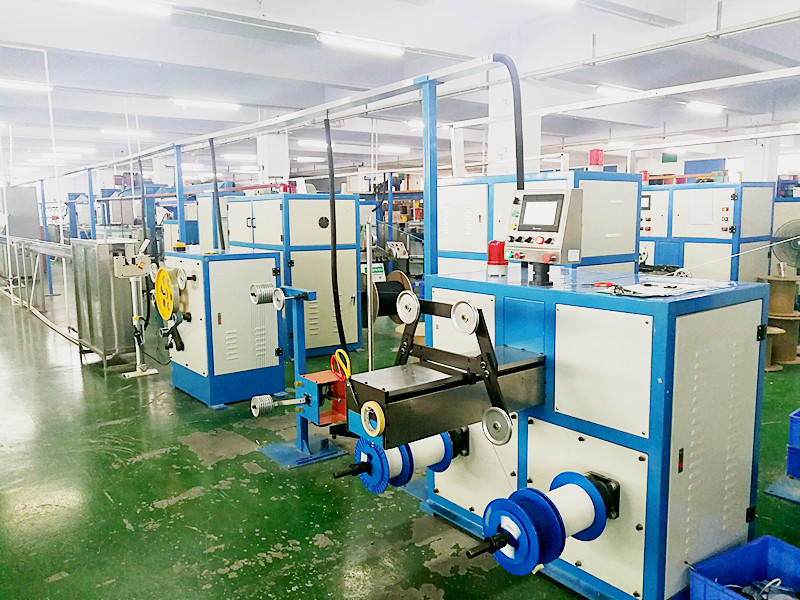

Modern workshop environment

Large-scale standardized and automatic production


Factory & Workshop &Warehouse
Company name	HOOHA Co.,Ltd
Established	2003
Main products	upcast and continuous casting machine,wire extrusion machine,wire stranding machine,wire drawing machine,test machine and so on.
Value added service	Include factory planning, cable raw material supply,cable equipment layout,cable technology export,customer training and cable testing laboratory construction.
Factory location	Dongguan, China
Manufacturing Center	4000 sqm
Showroom	More than 2000 sqm.

Exhibition

2018 Bombay, India Fair

Our company took part the exhibition in India in 2018.

2019 Thailand Exhibition

Our company is attached to Thailand to participate in the exhibition in 2018

2020 International Cable & Wire Fair

Our company will participate in the Shanghai International Cables and Wire Wire Exhibition in 2020

Customer Cases

Algeria

Dubai

Syria

Houston, USA

Egypt

FAQ

1. who are we?
 We are based in Guangdong, China, start from 2017,sell to Africa(17.00%),Mid East(17.00%),Southeast Asia(16.00%),Eastern Asia(13.00%),South Asia(10.00%),South America(8.00%),Eastern Europe(4.00%),North America(3.00%),Northern Europe(3.00%),Southern Europe(3.00%),Oceania(2.00%),Western Europe(2.00%),Central America(2.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
 Always a pre-production sample before mass production;
 Always final Inspection before shipment;

3.what can you buy from us?
 Drawing Machine,Stranding Machine,Cabling Machine,Extrusion Machine,Bunching Machine

4. why should you buy from us not from other suppliers?
 1.10 year R&D working experience with over sea service 2.5 big LV/MV cable project over 5 million working experience 3.After service team has 30 country working experience 4. HOOHA team focus on the cable making and use solution supply chain.

5. what services can we provide?
 Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
 Accepted Payment Currency:USD,EUR,CNY;
 Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
 Language Spoken:English,Chinese
6.After service
 1. Delivery dates: 60 days
 2. Payment: TT or L/C
 3. Packing: Plastic packing to ensure the goods safety on the transportation.
 4. Install and training service: 2 professional engineers who has over 5 years overseas install and cable manufacture training experience.
5. After service phone number online
