500 Type Automatic Pair Twisting Back Twisting Production Line For CAT7 CAT8 wire and Cable

Name: 500 Type Automatic Pair Twisting Back Twisting Production Line For CAT7 CAT8 wire and Cable
Brand: HOOHA
Price: 220000 USD

Wholesale 500 Type Automatic Pair Twisting Back Twisting Production Line For CAT7 CAT8 wire and Cable from china suppliers

Brand Name : HOOHA

Model Number : HH-500

Certification : ISO, CE, SGS

Place of Origin : Guangdong，China

MOQ : 1unit

Price : USD 220000/unit

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 1 unit 60days

Delivery Time : 60days

Packaging Details : film/wooden package

Usage : Twisting，Suitable for CAT7,CAT8

Take-up bobbin : 500mm

Core wire specifications : Best range:0.8~2.0mm

Strand O.D. : Best range:1.6~4.0mm

Retorsion rate : 0~100% arbitrary setting

Contact Now

Procedure

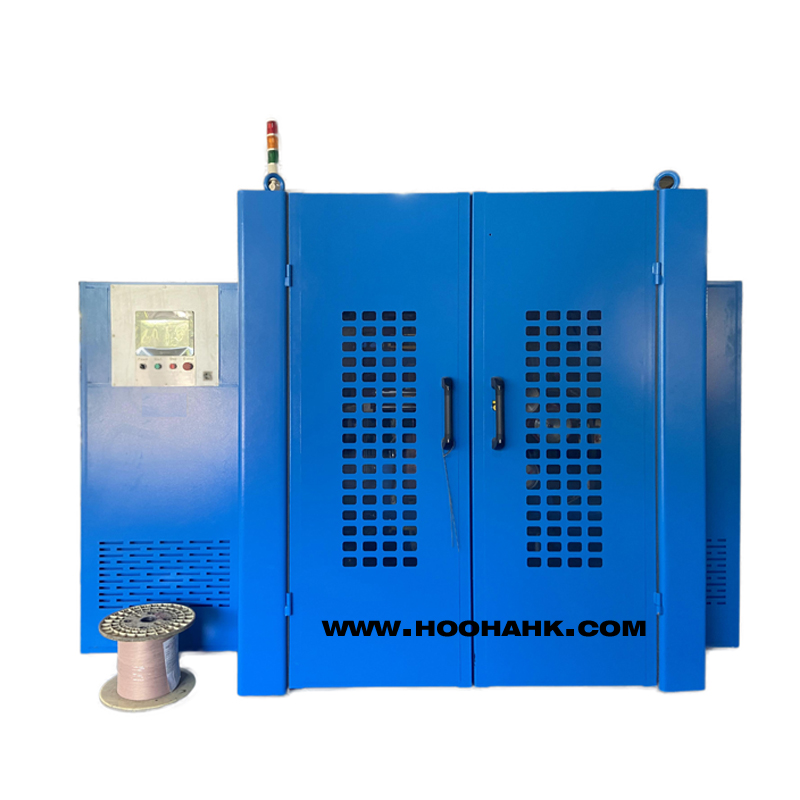

500 Type Automatic Pair Twisting Back Twisting Production Line For CAT7 CAT8 wire and Cable

Products Description

500 type electronic twisting distance

all-in-one twist (twins) back twisting production line

Application:
 Suitable for LAN cable CAT5, CATE5, CAT6, CAT7, CAT8 cable signal wire twisted pair, The unique upper and lower structure design.

Core wire specifications	Best range:Ф0.8~2.0mm
Strand O.D.	Best range:Ф1.6~4.0mm
RPM range	For details, please refer to the product parameters of the twist release and stranding mainframe
Strand pitch setting	Touch screen + PLC program setting
Range of strand pitch	Optimal range:5~30mm, special specifications must be written in the custom item
Retorsion rate	0~100% arbitrary setting
Tolerance of strand pitch	±2%
Strand direction	S,Z are available
Tension form	Pendulum type constant tension control
Lineup type	Light bar arrangement
Voltage	Three phase 380V as standard, non-standard as specified by customer

Specifications

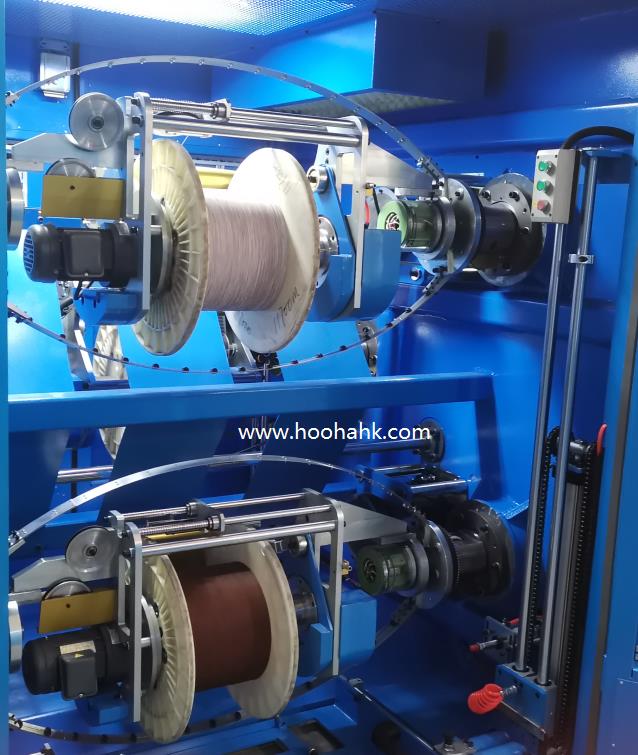

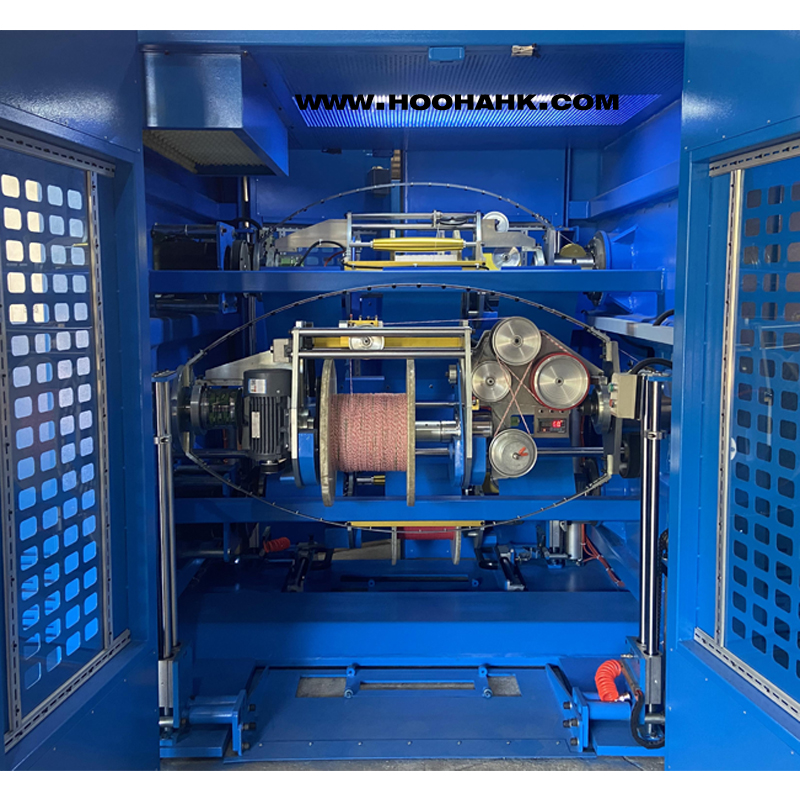

Structure type	Upper and lower integrated double disc, bow type retreating twist power Pay-off
Diameter of bobbin	Ф500 type, minimum for Ф400
Spool circumference	Maximum full disk perimeter: 1.5M, minimum empty disk perimeter 0.7M
Applicable wire diameter	Ф0.8~1.7mm
Spool lift	Pneumatic lifting, sliding plate type loading and unloading reel
Tensioning method	Pneumatic top tightening
Brake	Motor brake
Speed range	MAX1800RPM
Tension type	Pendulum type tension control
Tension adjustment	Adjusting the payoff tension by adjusting the slider position
Tension range	100~2000g
Tension guide wheel	Standard for Ф120

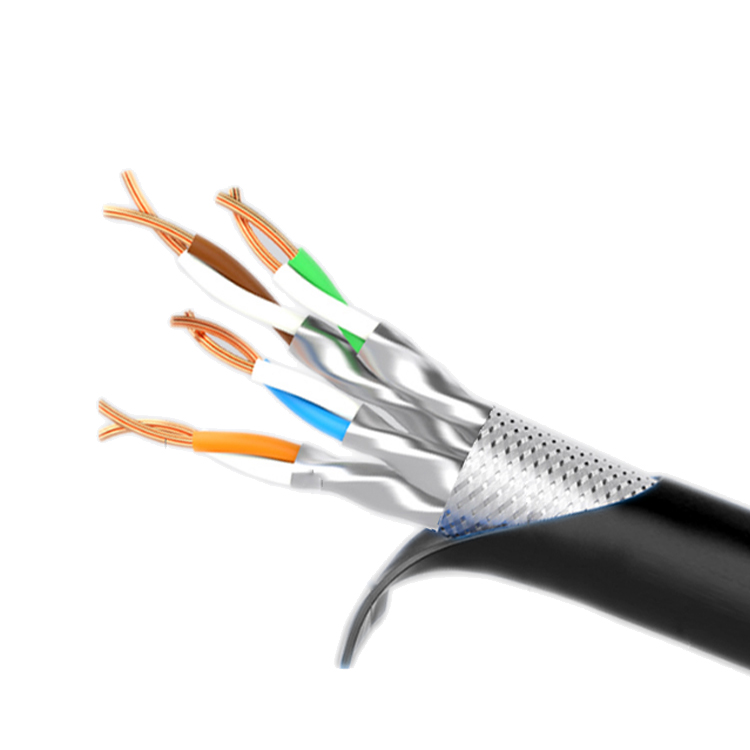

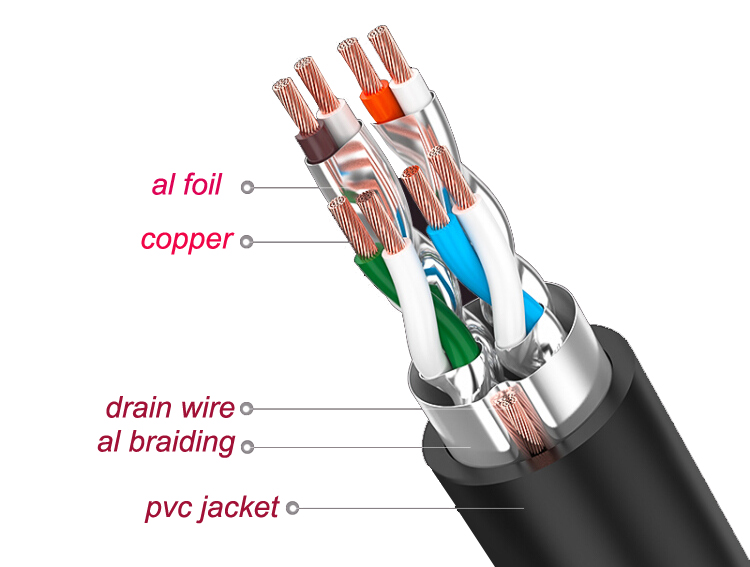

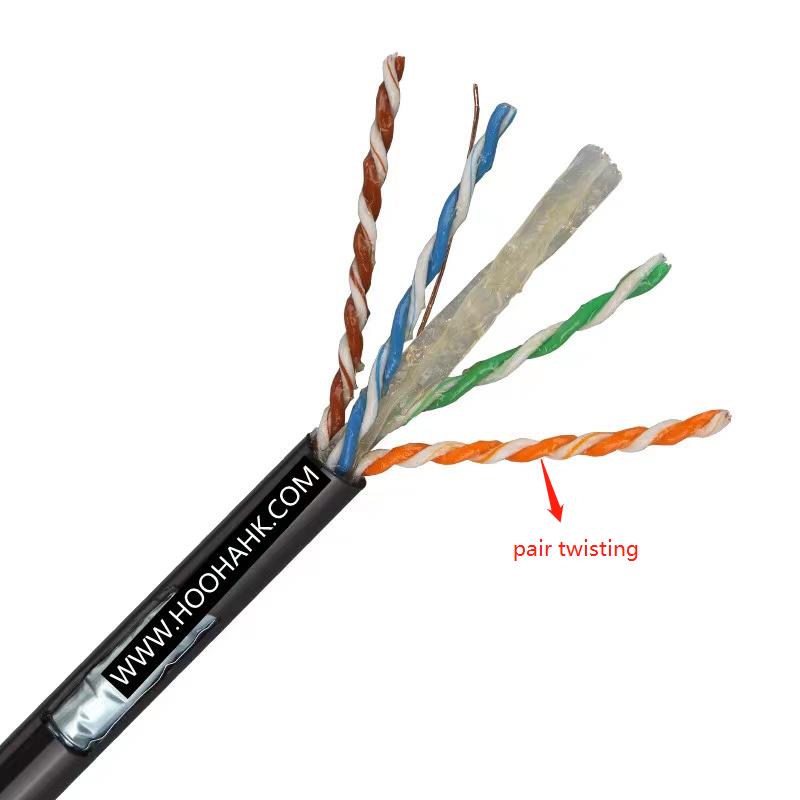

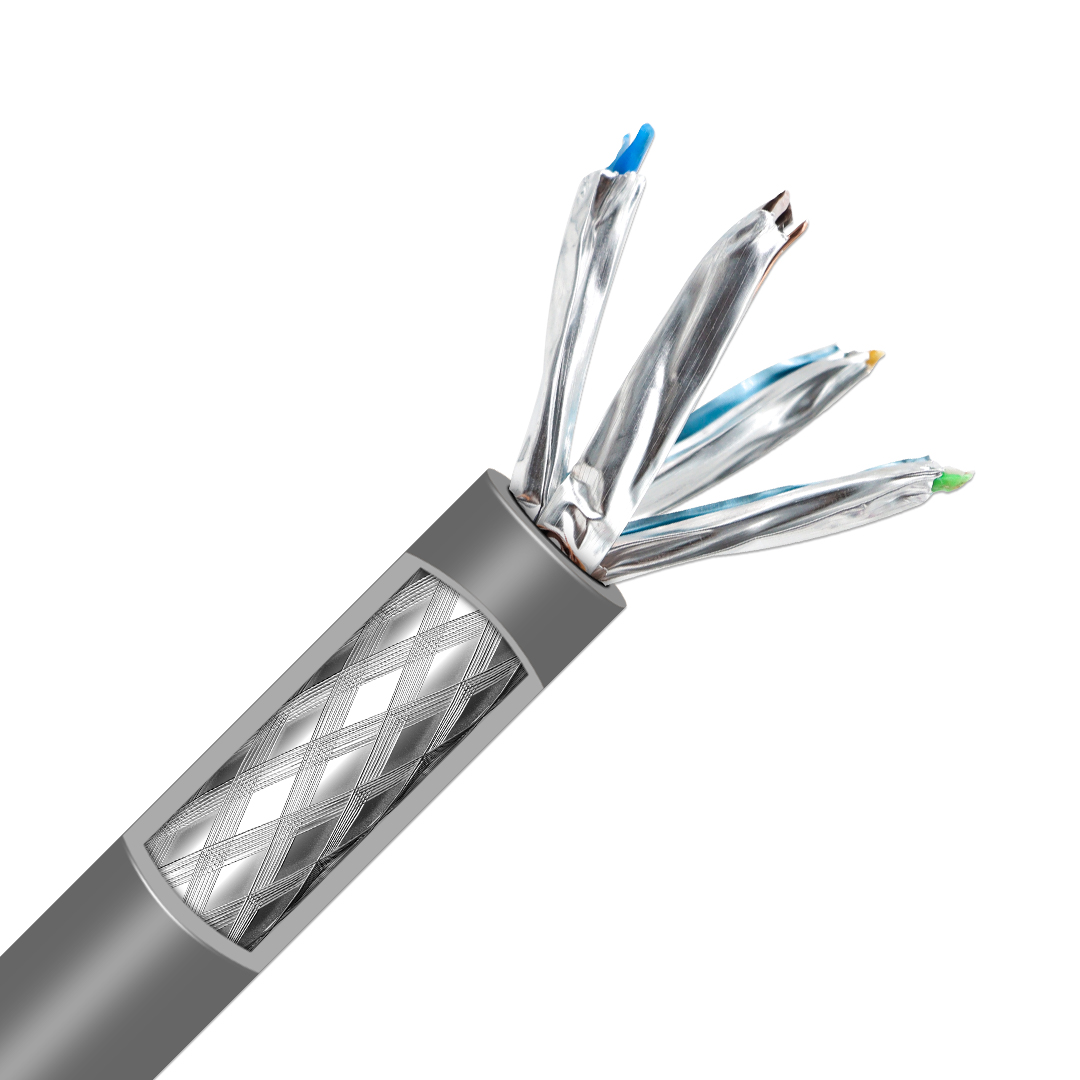

Samples

Standard:
TIA 568A/568B
ISO11801 Class E
America ETL
America ROHS
FLUKE PASSED

Company Profile

Hu Machine Designer
20 years engineering design experience

Bi Leading Engineer
Responsible for project engineering

Chen Senior Engineer
Machine design for 30 years

Professional and Strong Manufacture and Sales Team
Name	Education	Position	Mainly responsible for project	Specializing in project	working year
zanyang Xie	college	General Engineer	The total project design and planning	power cable machine	15 years
xiaohua Hu	college	Vice- general engineer	The total project design and planning	net cable,data cable machine	10years
Changhong Cheng	college	Engineer	Drawings and after-sales service	Teflon,Optical fiber cable machine	25 years
xiuwu Chen	college	General Engineer	The total project design and planning	copper drawing machine	15 years
lixin Yuan	college	Engineer	The project design and planning	coppwer wire making technical	16 years
zhenghai Qiu	college	cable engineer	After service	cable making and cable factory management servie	15 years
jinxin Liu	college	Marketing engineer	After service	electrical engineer	7 years
xingguo Tang	High school	Electrical engineer	After service	electrical engineer	10 years
changqiang Li	High school	Maintain engineer	After service	machina maintain and install service	10 years
haipin Li	University	Engineering director	Marketing and sales	project consulting	8 years
sen Yang	University	Engineering translator	Marketing and sales	project consulting	5 years

Our aim: To be a world-class supplier providing wire & cable manufacturing and using solution. Our vision: To make wire & cable manufacturing and using more humanized. Our target: More professional customer service, struggle for employees' dreams. We are a Hong kong company, focusing on in-depth cooperation with Chinese leading manufacturers to provide advanced wire&cable solutions

Certificates and Exhibitions

Customer Cases

FAQ

1. Who are we?	We are based in Guangdong, China, start from 2017
	* HOOHA products sell to	Africa(17.00%)	Mid East(17.00%)
		Southeast Asia(16.00%)	Eastern Asia(13.00%)
		South Asia(10.00%)	South America(8.00%)
		Eastern Europe(4.00%)	North America(3.00%)
		Northern Europe(3.00%)	Southern Europe(3.00%)
		Oceania(2.00%)	Western Europe(2.00%)
		Central America(2.00%)

2.What can you buy from us?	Drawing Machine	Cabling Machine	Bunching Machine
2.What can you buy from us?	Stranding Machine	Extrusion Machine	Wrapping and Packing machine

3. How can we guarantee quality?	Always a pre-production sample before mass production
	Always final Inspection before shipment

4. What services can we provide?	Accepted Delivery Terms:	FCA,FOB,CFR,CIF,EXW,Express Delivery
	Accepted Payment Currency:	USD,EUR,CNY
	Accepted Payment Type:	T/T,L/C,Credit Card,PayPal,Western Union,Cash
	Language Spoken:	English,Chinese,Cantonese

5. What are our advantages over other suppliers?	10 year R&D working experience with over sea service
	5 big LV/MV cable project over 5 million working experience
	After service team has 30 country working experience
	HOOHA team focus on the cable making and use solution supply chain.
