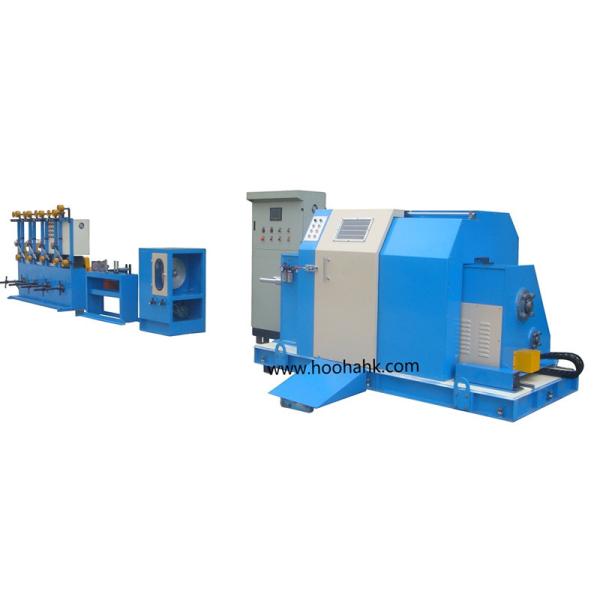

Cantliever Single Twisting Machine Cable Twsiting Machine Wire Twister For Power Electric Wire Insulated Wire Stranding

Name: Cantliever Single Twisting Machine Cable Twsiting Machine Wire Twister For Power Electric Wire Insulated Wire Stranding
Brand: HOOHA
Price: 220000 USD

Wholesale Cantliever Single Twisting Machine Cable Twsiting Machine Wire Twister For Power Electric Wire Insulated Wire Stranding from china suppliers

Brand Name : HOOHA

Model Number : HH-1250

Certification : ISO, CE, SGS

Place of Origin : Guangdong，China

MOQ : 1unit

Price : USD 220000/unit

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 1 unit 60days

Delivery Time : 60days

Packaging Details : film/wooden package

Usage : Stranding

Pay off : 1250mm

Main body speed : 400 RMP

Line speed : 150M/min

Conductor Section : 10-50mm²

Rotor speed : 350 rpm

Motor Power : 55/65/75KW

Max Core : 12mm

Contact Now

Specification

item	value
Place of Origin	China
Brand Name	HOOHA
Model Number	HH-630/800/1000/1250
Usage	Twisting
Certificate	ISO/Ce
Motor	Siemens
Bearing	NSK
Inverter	Siemens
Electric Element	Siemens and Omron
Features	Automatic
Transport Package	Plastic Package
HS Code	8479811000
Warranty	12 Months

Product Description

Cantliever Single Twisting Machine Cable Twsiting Machine Wire Twister For Power Electric Wire Insulated Wire Stranding

630-1250 Cantliever Type Cable Single Bunching Machine in Cable Manufacturing Equipment

Application:
The machine manly apply to multiple cable of data cable,HDMI wire cable,,power cable, naked copper wire(fine wire), shielding layer cable, control cable etc.

Configuration:
 Singles stranding main unit, electric control system,Centre wrapping machine, side-way giving wrap & wire device.

 Traits:
 1.Computer control pitch,non-tension traction wheel,motion wiring cable passing path,increase the traction wheel diameter to reduce the wire cable curve.
 2.Stranding main unit cantilever arm structure,revolving body with low rotating inertia,high rpm and stable speed.
 3.Coiling box move trays left and right along the slide way,pitch stable with stepless adjusting,stranding wire cable ranking
 neat,balance tension.
 4.Compared with traditional single stranding machine,it has the advantage of avoiding screw rod breaking at high speed.
 5.Tray loading and discharging easy with low labour consumption.

Layout of the equipment


Inside of machine

Cantilever single twisting machine
machinery model	HH-630	HH-800	HH-1000	HH-1250
single wire OD of high-speed cantilever single twisting machine	Φ0.5-Φ3.0mm	Φ0.8-Φ3.0mm	Φ1.0-Φ5.0mm	Φ1.0-Φ5.0mm
max strandding OD of high-speed cantilever single twisting machine	Φ12mm	Φ20mm	Φ25mm	Φ30mm
traverse pitch of high-speed cantilever single twisting machine	2-12mm	3-20mm	3-30mm	3-35mm
speed of high-speed cantilever single twisting machine	max800rpm	max600rpm	max500rpm	max450rpm
twisting pitch of high-speed cantilever single twisting machine	20-200mm	20-300mm	20-400mm	30-500mm
pay-off bobbin size of high-speed cantilever single twisting machine	Φ500mm	Φ500-Φ630mm	Φ500-Φ630mm	Φ500-Φ630mm
take-up bobbin size of high-speed cantilever single twisting machine	Φ630mm	Φ800mm	Φ1000mm	Φ1250mm

The wire samples

*Apply for Data cable, HDMI cable, power cable, bare copper cable, shielded layer cable, control cable, etc.* Multistrand copper/aluminium/steel wire and cable

Company Profile

* Modern production mode

* Factory specialized assembly line operation

Our aim: To be a world-class supplier providing wire & cable manufacturing and using solution. Our vision: To make wire & cable manufacturing and using more humanized. Our target: More professional customer service, struggle for employees' dreams. We are a Hong Kong company, focusing on in-depth cooperation with Chinese leading manufacturers to provide advanced wire&cable solutions.

Hu Machine Designer 20 years engineering design experience

Bi Head Engineer Responsible for project type engineering

Chen Senior Engineer Machine design for 30 years

Professional Engineers and Sale Teams
Name	Education	Position	Mainly responsible for project	Specializing in project	work year
zanyang Xie	college	General Engineer	The total project design and planning	power cable machine	15 years
xiaohua Hu	college	Vis general engineer	The total project design and planning	net cable,data cable machine	10 years
Changhong Cheng	college	Engineer	Drawings and after-sales service	Teflon,Optical fiber cable machine	25 years
xiuwu Chen	college	General Engineer	The total project design and planning	copper drawing machine	15 years
lixin Yuan	college	Engineer	The project design and planning	coppwer wire making technical	16 years
zhenghai Qiu	college	cable engineer	After service	cable making and cable factory management servie	15 years
jinxin Liu	college	Marketing engineer	After service	electrical engineer	7 years
xingguo Tang	High school	Electrical engineer	After service	electrical engineer	10 years
changqiang Li	High school	Maintain engineer	After service	machina maintain and install service	10 years
haipin Li	University	Engineering director	Marketing and sales	project consulting	8 years
sen Yang	University	Engineering translator	Marketing and sales	project consulting	5 years

Exhibitions ＆ Certifications

2018 Bombay, India Fair

Our company took part the exhibition in India in 2018.

2019 Thailand Exhibition

Our company is attached to Thailand to participate in the exhibition in 2018

2020 International Cable & Wire Fair

Our company will participate in the Shanghai International Cables and Wire Wire Exhibition in 2020

CE Certification Incorporation Certification  Cabex Certification SGS Certification

Customer Cases

Huston, USA

Dubai

Egypt

Syria

Algeria

Packing & Delivery

The raw material packing

 1.The CCA copper will packing anti the oxidation way2.The PVC/PE/FEP packing will use the paper box and wood packing
 3.The tape also use the paper box add wood package

The machine packing

 1.usually use the PE foam package2.The base need wood package
 3.The tape will fixed the machine on the container

The machine package arrange

1.The machine will arrange the drawing of each machine on the container before loading2.save the space for our client
 3.ensure the machine delivery 100% safty

FAQ

1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(17.00%),
Mid East(17.00%),
Southeast Asia(16.00%),
Eastern Asia(13.00%),
South Asia(10.00%),
South America(8.00%),
Eastern Europe(4.00%),
North America(3.00%),
Northern Europe(3.00%),
Southern Europe(3.00%),
Oceania(2.00%),
Western Europe(2.00%),
Central America(2.00%).
There are 5-10 professional workers in HOOHA.

 2. how can we guarantee quality?
 Always a pre-production sample before mass production;
 Always final Inspection before shipment;

 3.what can you buy from us?
 Drawing Machine,Stranding Machine,Cabling Machine,Extrusion Machine,Bunching Machine

 4. why should you buy from us not from other suppliers?
 1.10 year R&D working experience with over sea service 2.5 big LV/MV cable project over 5 million working experience 3.After service team has 30 country working experience 4. HOOHA team focus on the cable making and use solution supply chain.

 5. what services can we provide?
 Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery；
 Accepted Payment Currency:USD, EUR, CNY;
 Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
 Language Spoken:English,Chinese
6.After service
1. Delivery dates: 45 days
2. Payment: TT or L/C
3. Packing: Plastic packing to ensure the goods safety on the transportation.
4. Install and training service: 2 professional engineers who has over 5 years overseas install and cable manufacture training experience.
5. After service phone number online
